Project 6 – Rebuild of an homemade HP-23 PS

Document converti depuis ve2cuy.com/blog — dernière modification : 2010-05-23

A few months ago I bought, from a Ham operator, an HW-100 transceiver.

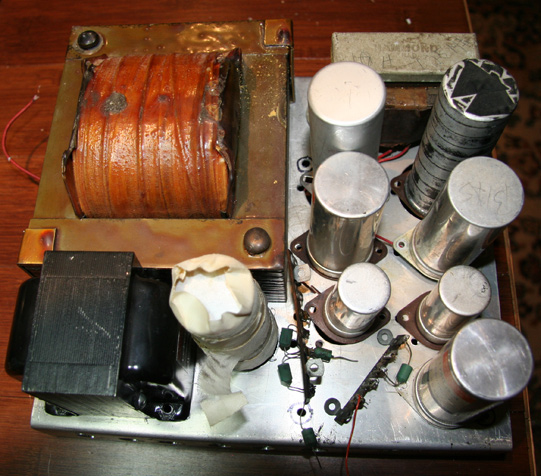

The radio came with a homemade power supply that was a health hazard in a shack.

The HV capacitors where 450 volt HOT on the can!!!

The voltage transformer is a beef and is still working so I decided to rebuild the power supply.

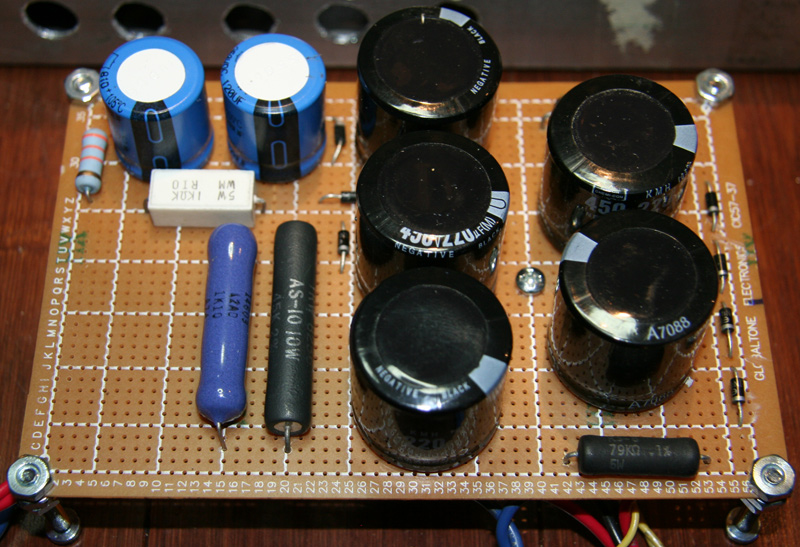

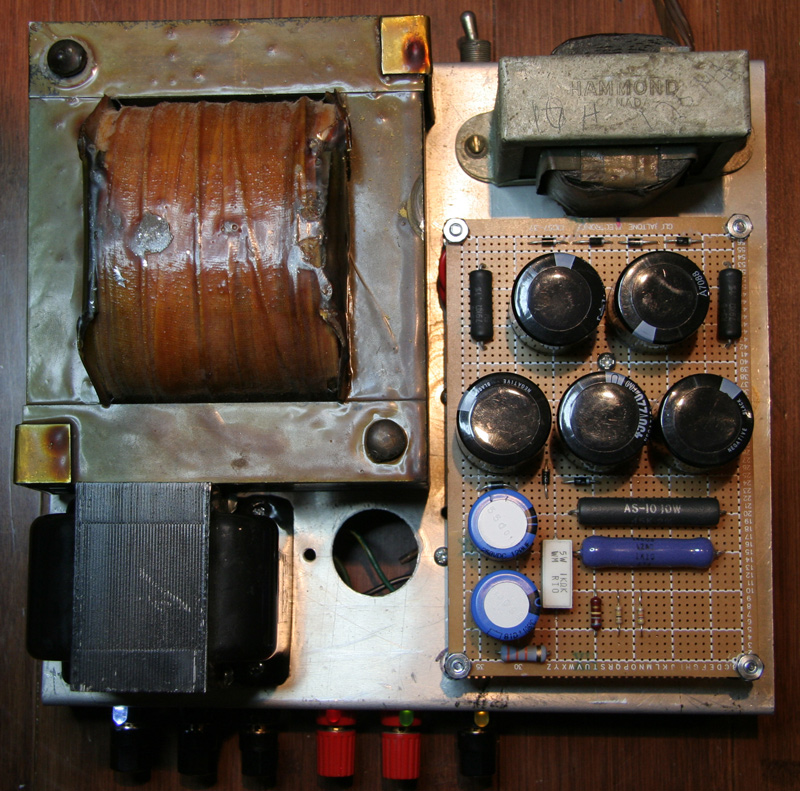

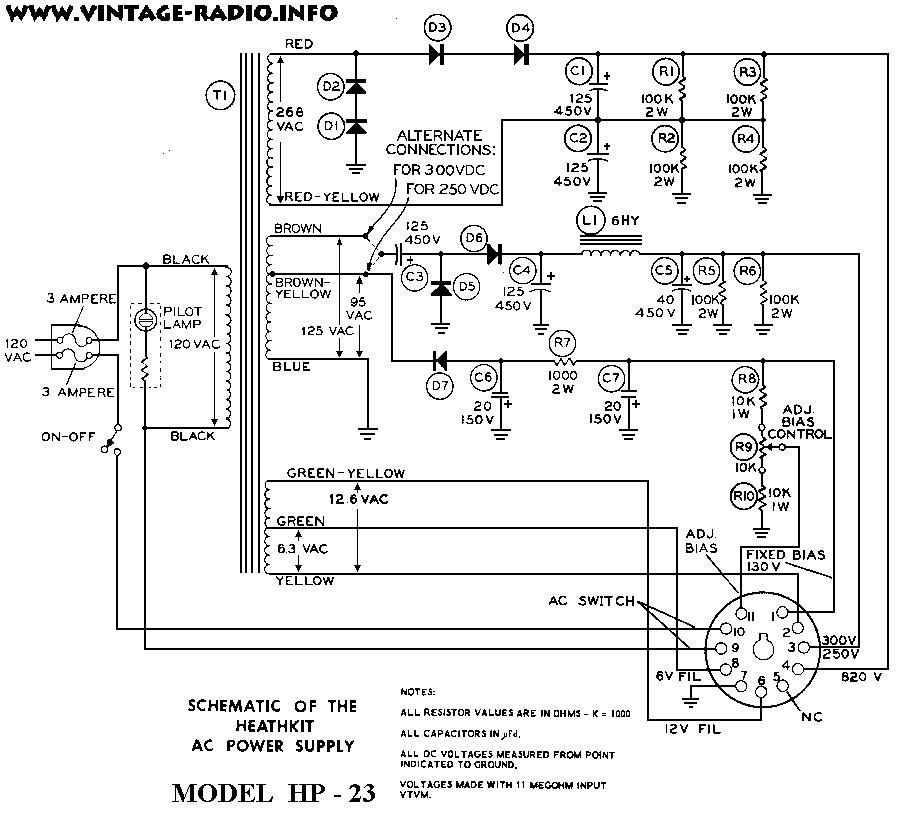

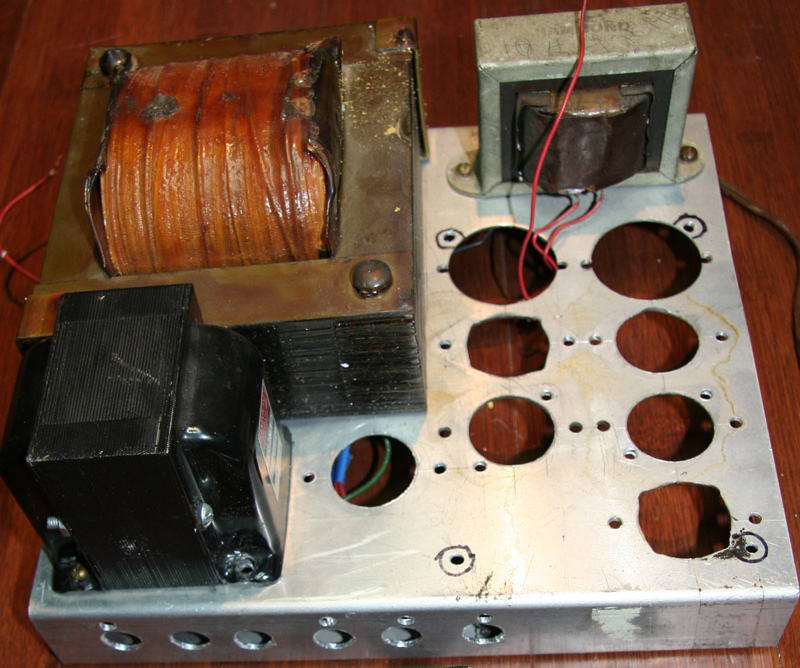

Everything was strip and rebuild according to Heathkit model HP-23 PS.

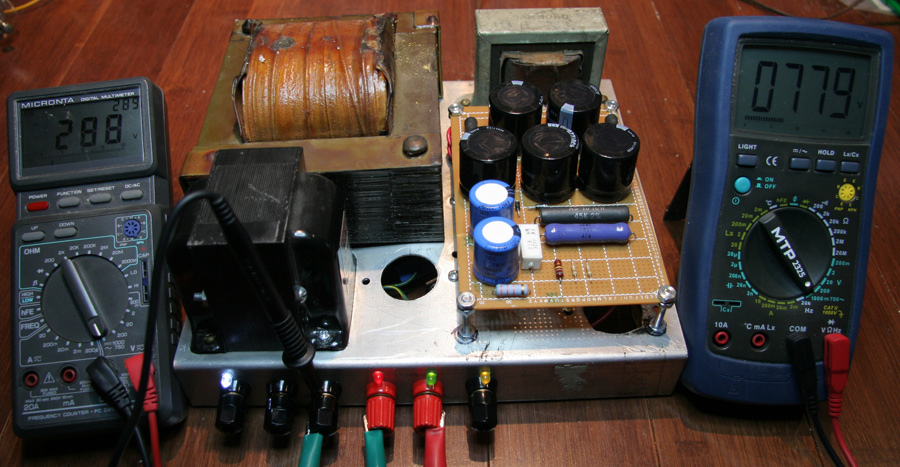

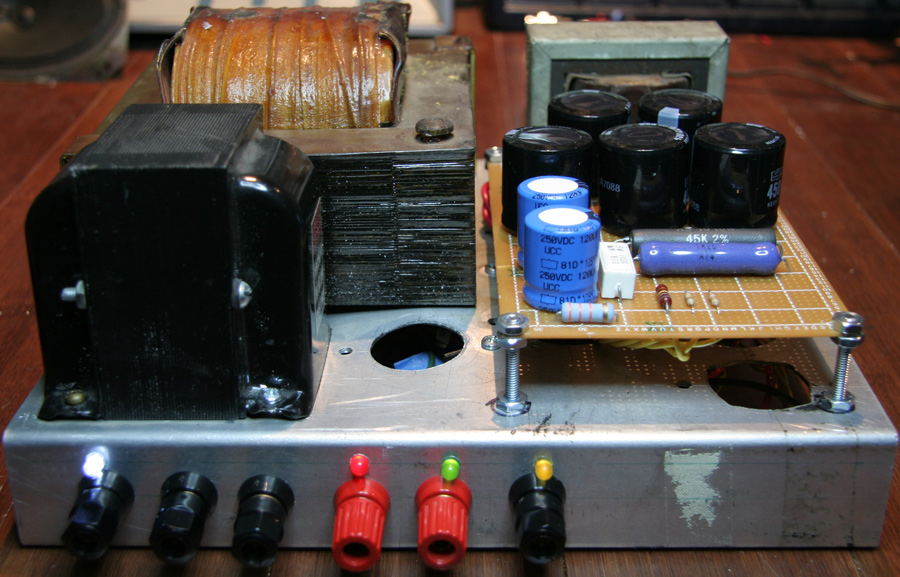

The ‘new’ PS now works great!
